Model:                WDN-6024LTYA
Category:            Brand New
Power Cable:      Yes
Remote:               Yes
Box:                      Yes

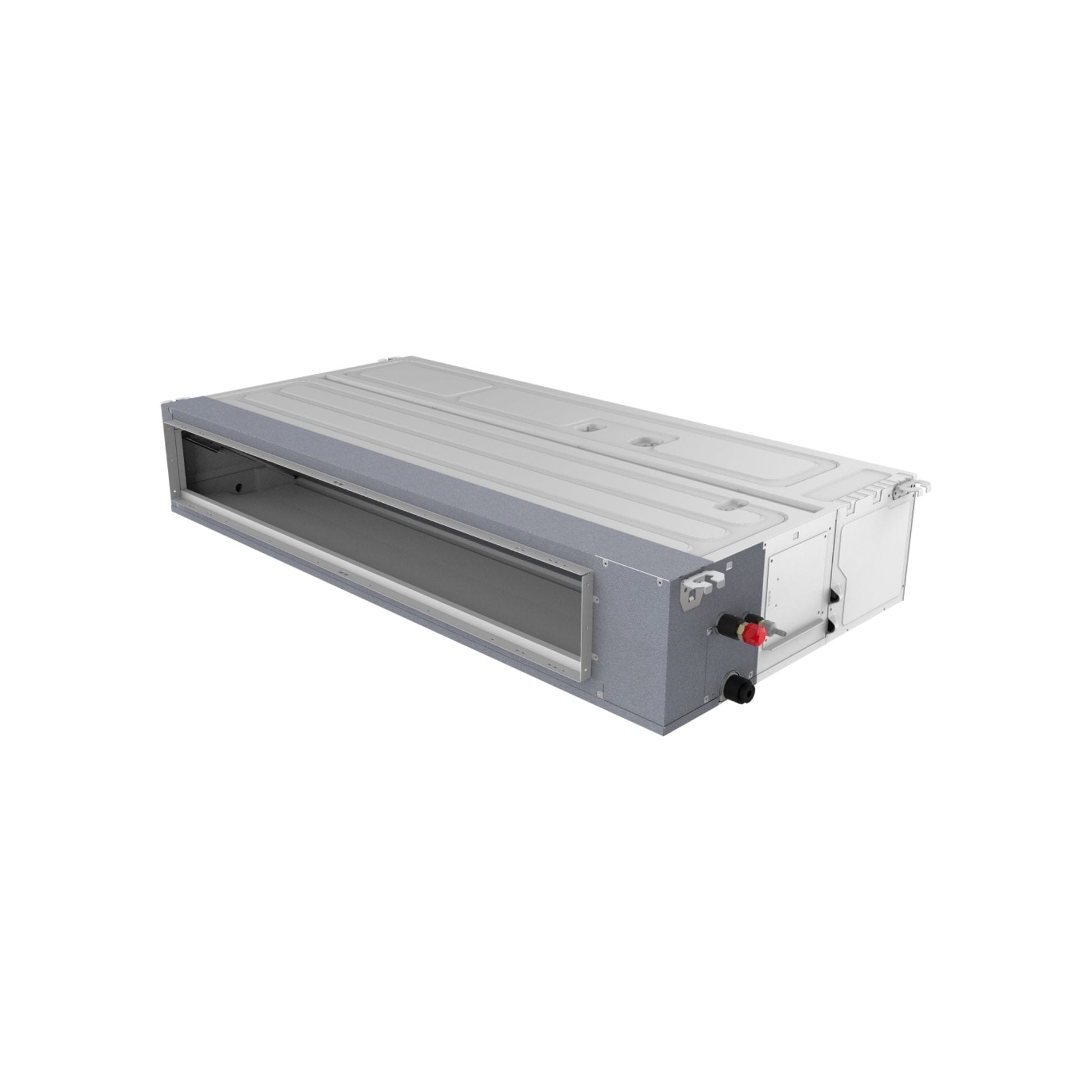

The WestPoint 5 Ton Concealed Duct Type Inverter Air Conditioner (Model: WDN-6024LTYA) is a high-capacity, light commercial-grade central climate control plant. Designed to slide completely out of view within standard false ceilings or dropped plasterboard zones, this industrial-strength system pairs energy-saving variable-speed DC Inverter technology with a massive 60,000 BTU/h engine. It represents a premier, minimalist solution for uniform air distribution across expansive modern villas, multi-room offices, luxury showrooms, and commercial spaces in severe desert climates.

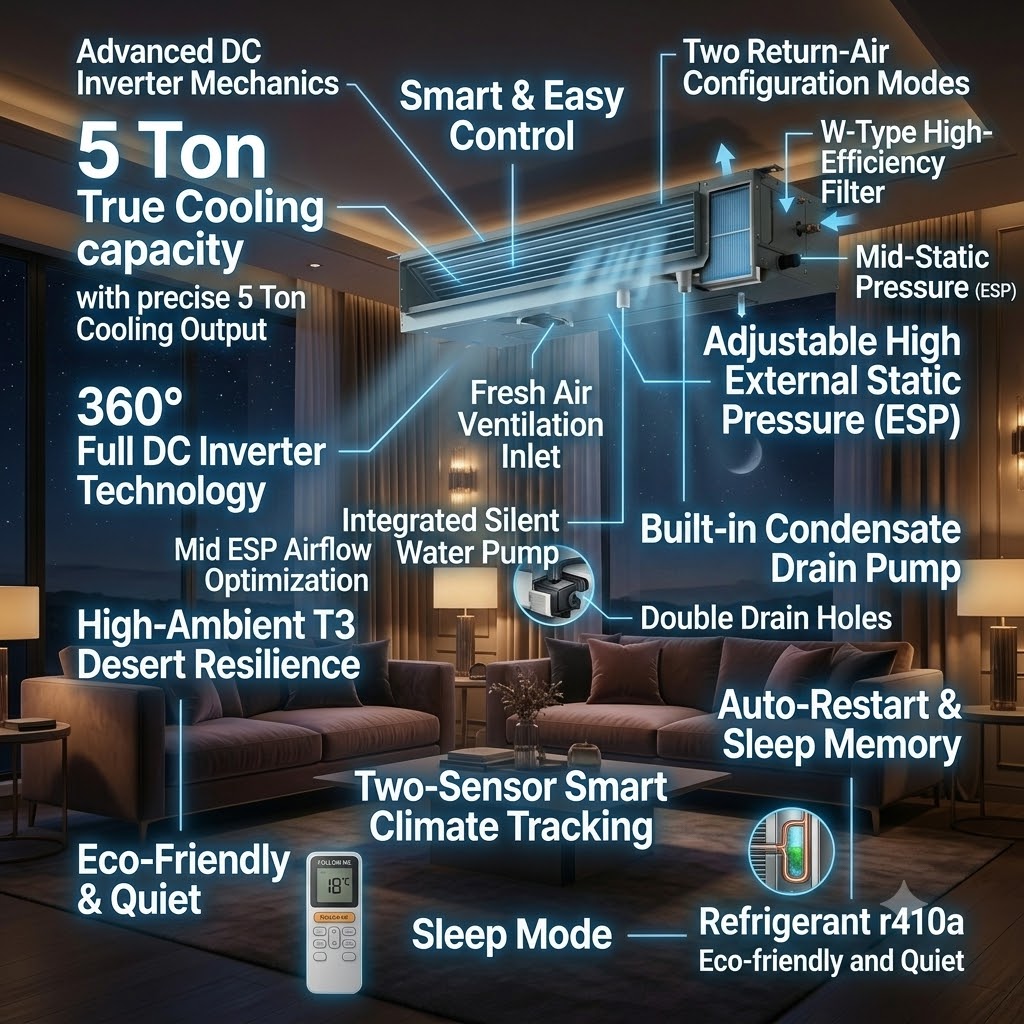

Advanced DC Inverter Mechanics

•  Driven by a premium variable-frequency compressor that dynamically scales its motor speed to match real-time room thermal loads. By preventing the inefficient, high-amperage on/off cycles of older non-inverter architectures, it stabilizes climate profiles and delivers substantial long-term electricity savings.

Concealed Slim Duct Framework

•  Engineered with a compact profile optimized for low-clearance false ceilings. By tucking entirely into the ceiling plenum, conditioned air is delivered silently through discrete linear or square diffusers, keeping your walls completely free for customized interior decor.

Mid ESP Airflow Optimization

• Features a Medium External Static Pressure (Mid ESP) blower layout. This specialized configuration provides the perfect balance of static force to push high volumes of conditioned air evenly through moderate rigid or flexible duct networks without suffering dramatic line pressure losses.

Fresh Air Ventilation Inlet

•  Houses a dedicated knockout port engineered to accept a fresh-air intake connection loop. This allows the system to continuously draw in, filter, and mix treated outdoor air into the room's circulation loop, drastically reducing carbon dioxide build-up and boosting overall indoor air quality.

Integrated Silent Water Pump

• Equipped with a built-in, low-vibration motorized condensate lift pump. This assembly actively pumps water away, overcoming structural height barriers and allowing for highly flexible drain lines in tight ceiling zones.

Two Return-Air Configuration Modes

•  Built with adaptive structural panels that allow the return-air grid to be configured from either the rear or the bottom of the handler box during installation, giving HVAC mechanical teams maximum flexibility to work around structural columns or plumbing.

W-Type High-Efficiency Filter

•  Utilizes a custom-folded W-configuration internal micro-mesh filter array. This corrugated geometry doubles the surface area of standard flat screens, capturing far more airborne dust particles, lint, and allergens before they enter the heat exchanger.

Mid-Static Pressure (ESP)

•  Ideally suited for moderate duct runs.

Double Drain Holes:

• Simplifies piping installation and allows reliable water drainage from both sides.

Refrigerant

• Typically uses environmentally friendly R410A gas.
