Model:                SGDI1830AE
Category:            Brand New
Power Cable:      Yes
Remote:               Yes
Box:                      Yes

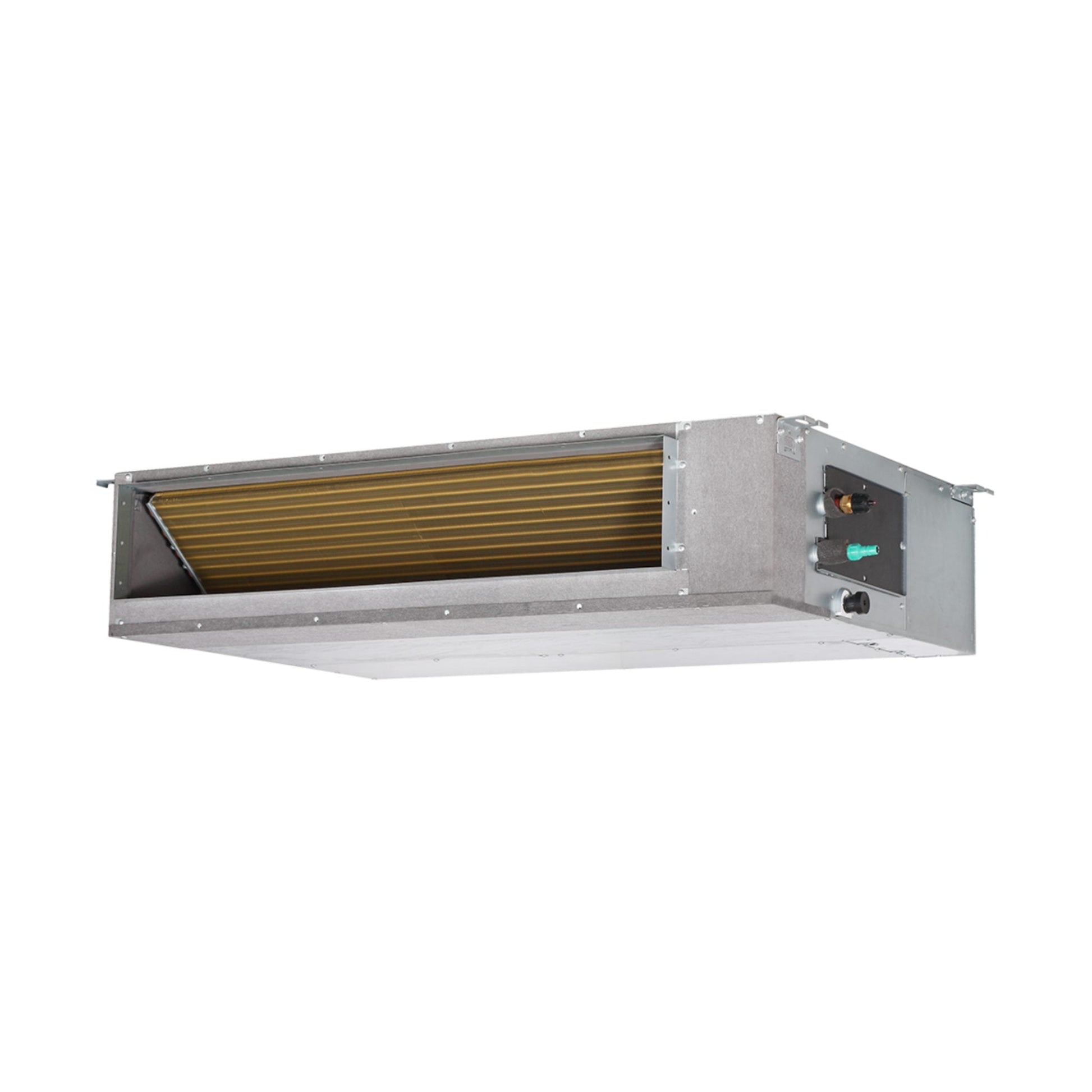

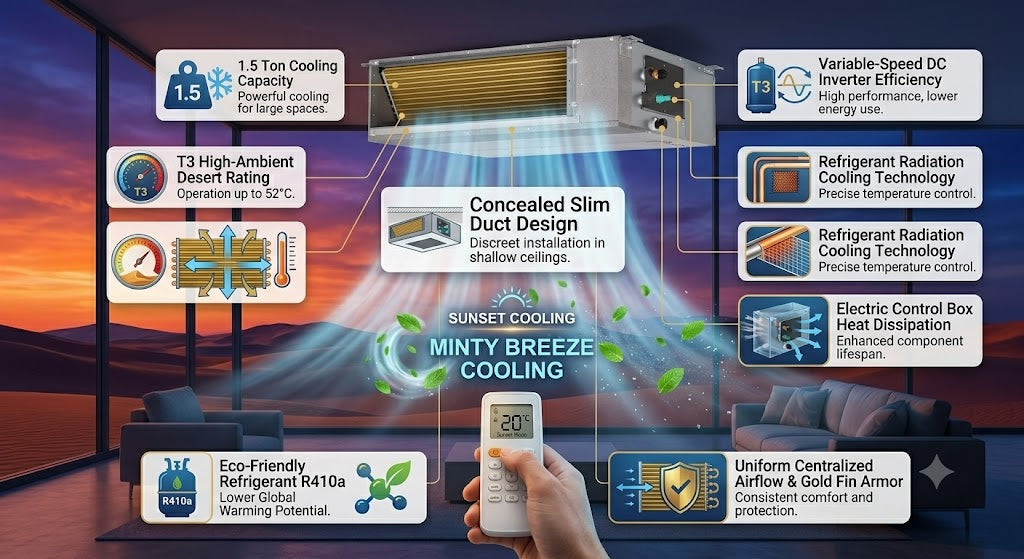

The Super General 1.5 Ton Concealed Duct Type Inverter Air Conditioner (Model: SGDI1830AE) is a slim, light-commercial and residential climate control system. It is explicitly engineered to deliver high-capacity, uniform cooling across large or open-concept rooms while hiding neatly away inside a suspended false ceiling.

Variable-Speed DC Inverter Efficiency

•  Unlike classic fixed-speed ducted systems that constantly cycle completely on and off (causing harsh electricity spikes), the variable-speed compressor dynamically adjusts its motor frequency to maintain the exact temperature setting. This cuts total power consumption by up to 25%.

T3 High-Ambient Desert Rating

• Built to maintain stable cooling cycles under intense Gulf summer heat waves. The outdoor condenser is rated for high-ambient climate profiles, operating continuously without thermal cutting or dropouts even when external surface temperatures rise up to 52°C.

Refrigerant Radiation Cooling Technology

•  A unique internal engineering upgrade. The system routes its cool refrigerant lines directly across the main electrical components and inverter PCB boards. This cools the sensitive electronics up to 5 times more effectively than conventional aluminum heat sinks, ensuring operational reliability when the outdoor unit is under maximum stress.

Electric Control Box Heat Dissipation

•  The external electrical control box features an advanced airflow layout using three dedicated heat-dissipation grids instead of the traditional single grid. This behaves similarly to a high-end laptop cooling array, speeding up internal airflow to protect safety circuits from overheating.

Concealed Slim Duct Design

• The indoor fan coil unit (FCU) boasts a highly compact, low-profile height chassis (210 mm). This flat silhouette makes it an excellent choice for modern residential ceilings, tight hallway clearances, or premium office spaces where vertical ceiling drop space is limited.

Uniform Centralized Airflow & Gold Fin Armor

•  Distributes chilled air softly through a connected network of hidden ducting to prevent localized cold drafts. Additionally, it features Super General’s protective anti-corrosive Gold Fin epoxy layout on the coils to prevent coastal salt-air decay and moisture pooling.

Eco-Friendly Refrigerant

•  Uses R410a refrigerant, which is known for excellent heat transfer capabilities and lower environmental impact.
